عرض توضيحي لتجميع هرمي منظم على صورة عملات معدنية#
احسب تجزئة صورة ثنائية الأبعاد باستخدام التجميع الهرمي. التجميع مقيد مكانيًا لضمان أن تكون كل منطقة مجزأة قطعة واحدة.
# المؤلفون: مطوري سكايلرن
# معرف الترخيص: BSD-3-Clause
توليد البيانات#
from skimage.data import coins
orig_coins = coins()
تغيير حجمها إلى 20% من الحجم الأصلي لتسريع المعالجة تطبيق مرشح غاوسي للتنعيم قبل التغيير إلى حجم أصغر يقلل من آثار التحجيم.
import numpy as np
from scipy.ndimage import gaussian_filter
from skimage.transform import rescale
smoothened_coins = gaussian_filter(orig_coins, sigma=2)
rescaled_coins = rescale(
smoothened_coins,
0.2,
mode="reflect",
anti_aliasing=False,
)
X = np.reshape(rescaled_coins, (-1, 1))
تحديد بنية البيانات#
البكسلات متصلة بجيرانها.
from sklearn.feature_extraction.image import grid_to_graph
connectivity = grid_to_graph(*rescaled_coins.shape)
حساب التجميع#
import time as time
from sklearn.cluster import AgglomerativeClustering
print("Compute structured hierarchical clustering...")
st = time.time()
n_clusters = 27 # number of regions
ward = AgglomerativeClustering(
n_clusters=n_clusters, linkage="ward", connectivity=connectivity
)
ward.fit(X)
label = np.reshape(ward.labels_, rescaled_coins.shape)
print(f"Elapsed time: {time.time() - st:.3f}s")
print(f"Number of pixels: {label.size}")
print(f"Number of clusters: {np.unique(label).size}")
Compute structured hierarchical clustering...
Elapsed time: 0.177s
Number of pixels: 4697
Number of clusters: 27
عرض النتائج على صورة#

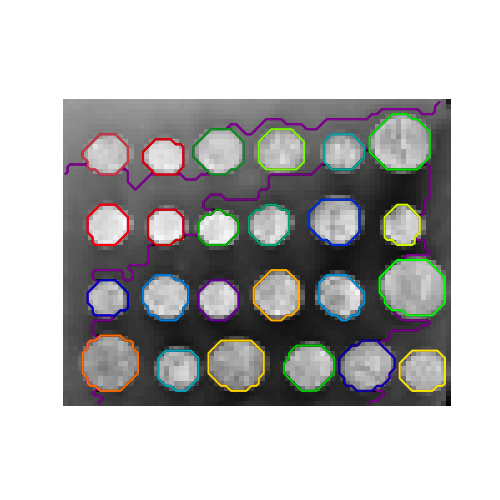

التجميع التجميعي قادر على تجزئة كل عملة معدنية، ولكن كان علينا استخدام "n_cluster" أكبر من عدد العملات المعدنية لأن التجزئة تجد منطقة كبيرة في الخلفية.
import matplotlib.pyplot as plt
plt.figure(figsize=(5, 5))
plt.imshow(rescaled_coins, cmap=plt.cm.gray)
for l in range(n_clusters):
plt.contour(
label == l,
colors=[
plt.cm.nipy_spectral(l / float(n_clusters)),
],
)
plt.axis("off")
plt.show()

Total running time of the script: (0 minutes 0.324 seconds)
