ملاحظة
Go to the end to download the full example code. or to run this example in your browser via JupyterLite or Binder
مقارنة بين البحث الشبكي وتقليص الخيارات المتتابع#
يقارن هذا المثال عملية البحث عن المعاملات التي يقوم بها كل من
HalvingGridSearchCV
و
GridSearchCV
.
# Authors: The scikit-learn developers
# SPDX-License-Identifier: BSD-3-Clause
from time import time
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from sklearn import datasets
from sklearn.experimental import enable_halving_search_cv # noqa
from sklearn.model_selection import GridSearchCV, HalvingGridSearchCV
from sklearn.svm import SVC
نحدد أولاً مساحة المعاملات لمصنف SVC
،
ونحسب الوقت اللازم لتدريب مثيل HalvingGridSearchCV
،
وكذلك مثيل GridSearchCV
.
rng = np.random.RandomState(0)
X, y = datasets.make_classification(n_samples=1000, random_state=rng)
gammas = [1e-1, 1e-2, 1e-3, 1e-4, 1e-5, 1e-6, 1e-7]
Cs = [1, 10, 100, 1e3, 1e4, 1e5]
param_grid = {"gamma": gammas, "C": Cs}
clf = SVC(random_state=rng)
tic = time()
gsh = HalvingGridSearchCV(
estimator=clf, param_grid=param_grid, factor=2, random_state=rng
)
gsh.fit(X, y)
gsh_time = time() - tic
tic = time()
gs = GridSearchCV(estimator=clf, param_grid=param_grid)
gs.fit(X, y)
gs_time = time() - tic
نعرض الآن مخططات حرارية لكلا المصنفين.
def make_heatmap(ax, gs, is_sh=False, make_cbar=False):
"""مساعد لإنشاء مخطط حراري."""
results = pd.DataFrame(gs.cv_results_)
results[["param_C", "param_gamma"]] = results[["param_C", "param_gamma"]].astype(
np.float64
)
if is_sh:
# مصفوفة SH: الحصول على قيم mean_test_score للـ iter الأعلى
scores_matrix = results.sort_values("iter").pivot_table(
index="param_gamma",
columns="param_C",
values="mean_test_score",
aggfunc="last",
)
else:
scores_matrix = results.pivot(
index="param_gamma", columns="param_C", values="mean_test_score"
)
im = ax.imshow(scores_matrix)
ax.set_xticks(np.arange(len(Cs)))
ax.set_xticklabels(["{:.0E}".format(x) for x in Cs])
ax.set_xlabel("C", fontsize=15)
ax.set_yticks(np.arange(len(gammas)))
ax.set_yticklabels(["{:.0E}".format(x) for x in gammas])
ax.set_ylabel("gamma", fontsize=15)
# تدوير تسميات التكتيكات وضبط محاذاتها.
plt.setp(ax.get_xticklabels(), rotation=45, ha="right", rotation_mode="anchor")
if is_sh:
iterations = results.pivot_table(
index="param_gamma", columns="param_C", values="iter", aggfunc="max"
).values
for i in range(len(gammas)):
for j in range(len(Cs)):
ax.text(
j,
i,
iterations[i, j],
ha="center",
va="center",
color="w",
fontsize=20,
)
if make_cbar:
fig.subplots_adjust(right=0.8)
cbar_ax = fig.add_axes([0.85, 0.15, 0.05, 0.7])
fig.colorbar(im, cax=cbar_ax)
cbar_ax.set_ylabel("mean_test_score", rotation=-90, va="bottom", fontsize=15)
fig, axes = plt.subplots(ncols=2, sharey=True)
ax1, ax2 = axes
make_heatmap(ax1, gsh, is_sh=True)
make_heatmap(ax2, gs, make_cbar=True)
ax1.set_title("Successive Halving\ntime = {:.3f}s".format(gsh_time), fontsize=15)
ax2.set_title("GridSearch\ntime = {:.3f}s".format(gs_time), fontsize=15)
plt.show()

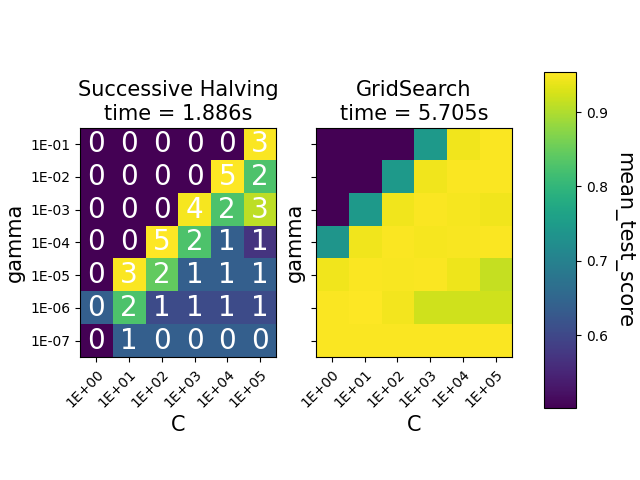

توضح المخططات الحرارية متوسط درجة الاختبار لتركيبات المعاملات لمصنف
SVC
. كما يظهر
HalvingGridSearchCV
أيضاً الـ iter الذي تم فيه استخدام التركيبات للمرة الأخيرة. التركيبات التي تم
تمييزها بـ "0" تم تقييمها فقط في الـ iter الأول، بينما تلك التي تحمل "5" هي
تركيبات المعاملات التي تعتبر الأفضل.
يمكننا أن نرى أن فئة HalvingGridSearchCV
قادرة على إيجاد تركيبات معاملات دقيقة مثل
GridSearchCV
، في وقت أقل بكثير.
Total running time of the script: (0 minutes 7.782 seconds)
