SVM: المستوى الفاصل ذو الهامش الأقصى#
ارسم المستوى الفاصل ذو الهامش الأقصى ضمن مجموعة بيانات قابلة للفصل من فئتين باستخدام مصنف آلة المتجهات الداعمة مع نواة خطية.

# المؤلفون: مطوري سكايلرن
# معرف الترخيص: BSD-3-Clause
import matplotlib.pyplot as plt
from sklearn import svm
from sklearn.datasets import make_blobs
from sklearn.inspection import DecisionBoundaryDisplay
# نقوم بإنشاء 40 نقطة قابلة للفصل
X, y = make_blobs(n_samples=40, centers=2, random_state=6)
# تدريب النموذج، عدم استخدام التنظيم لأغراض التوضيح
clf = svm.SVC(kernel="linear", C=1000)
clf.fit(X, y)

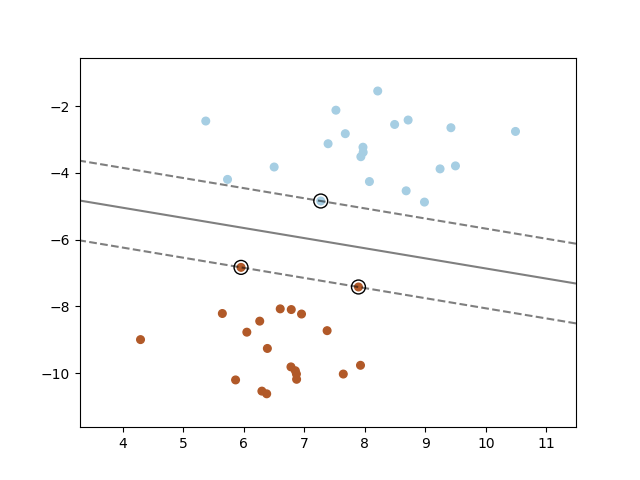

plt.scatter(X[:, 0], X[:, 1], c=y, s=30, cmap=plt.cm.Paired)
# رسم دالة القرار
ax = plt.gca()
DecisionBoundaryDisplay.from_estimator(
clf,
X,
plot_method="contour",
colors="k",
levels=[-1, 0, 1],
alpha=0.5,
linestyles=["--", "-", "--"],
ax=ax,
)
# رسم المتجهات الداعمة
ax.scatter(
clf.support_vectors_[:, 0],
clf.support_vectors_[:, 1],
s=100,
linewidth=1,
facecolors="none",
edgecolors="k",
)
plt.show()
Total running time of the script: (0 minutes 0.079 seconds)
